Application of Hall on Vehicle Gear Detection

Hall is widely used in transportation, domestic electric appliances, commercial manufacture and robots.

Hall in the vehicle gear detection principle is that when the Hall sensor lever to the magnetic field output low level. After leaving the magnetic field output high level. Based on this principle to determine whether the gear is in accurate place.

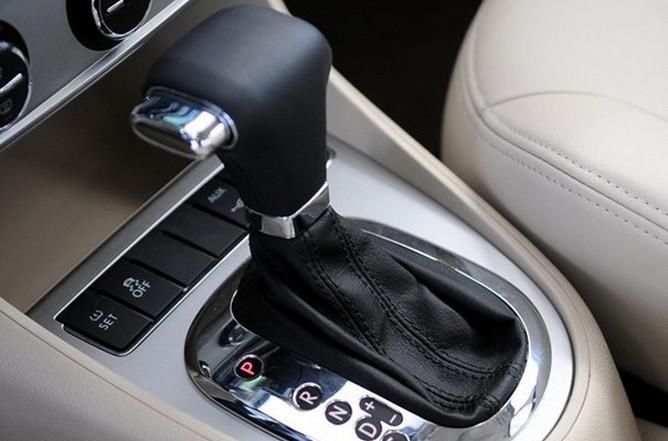

Application of Hall on Vehicle Gear Detection

Recommended product：Latch Type Hall Sensor

Latch Type Hall Sensor


Welcome contact us for the quote and other information of latch type hall sensor and other hall sensor products.
