Magnetic Sensor's Future Development Trend

The important role of Magnetic Sensor technology in developing the economy and promoting social progress is very obvious. All countries in the world attach great importance to the development of this field. It is believed that in the near future, sensor technology will take a leap forward and reach a new level commensurate with its important position. The future development trend of magnetic sensors has the following characteristics:
1, high sensitivity.
2, temperature stability.
3, anti-jamming.
4, miniaturization, integration, intelligence.
5, high frequency characteristics.
6, low power consumption.
It is believed that in the near future, sensors such as Gas Meter Sensor heat meter sensor energy meter sensor can be applied practically to each household's life to bring benefits to people.
Magnetic Sensor

评论

发表评论

此博客中的热门博文

Omnipolar Hall IC

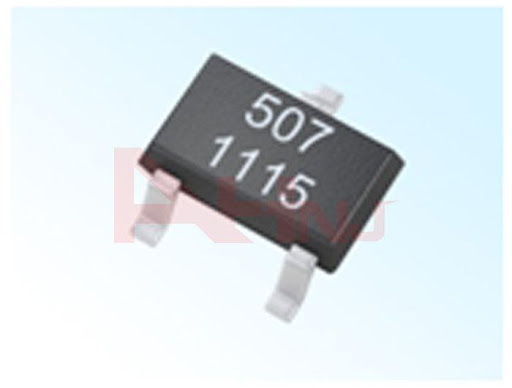

  Omnipolar Hall IC The omnipolar Hall-effect sensor  includes the following on a single silicon chip: reverse voltage protector, voltage regulator, temperature compensation circuit, Hall-voltage generator, signal amplifier, Schmitt trigger and open-drain output driver, etc. Produced with CMOS technology, an omnipolar Hall IC is asked for lower supply voltage and less power supply. It is available in two package types: SOT-23-3L (Type M) and TO-92UA (Type UA). More detail of China Hall Sensor , please via: https://www.ahest.net/
