The Working Principle Of Linear Hall Sensor

A Linear Hall Sensor converts a mechanical displacement through a potentiometer element into a resistive or voltage output that is linear or arbitrary as a function of it. Both ordinary linear potentiometers and circular potentiometers can be used as linear displacement and angular displacement sensors, respectively. However, a potentiometer designed to achieve the purpose of measuring displacement requires a certain relationship between the change in displacement and the change in resistance. The movable brush of the Linear Sensor is connected to the object to be measured.
Linear Hall Sensor
Hall Sensor Manufacturer tell you The displacement of the object causes a change in the resistance of the mobile end of the potentiometer. The amount of change in the resistance reflects the magnitude of the displacement, and the increase or decrease in the resistance indicates the direction of the displacement. A power supply voltage is typically applied to the potentiometer to convert the change in resistance to a voltage output. If such a displacement sensor is used as a displacement feedback element in a servo system, an excessive step voltage will cause the system to oscillate. Another major drawback of potentiometer sensors is their tendency to wear. Its advantages are: simple structure, large output signal, convenient use and low price.

评论

发表评论

此博客中的热门博文

Omnipolar Hall IC

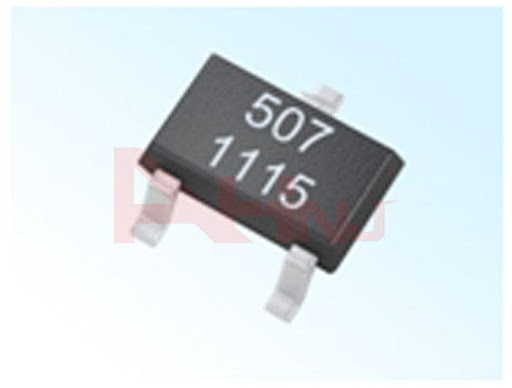

  Omnipolar Hall IC The omnipolar Hall-effect sensor  includes the following on a single silicon chip: reverse voltage protector, voltage regulator, temperature compensation circuit, Hall-voltage generator, signal amplifier, Schmitt trigger and open-drain output driver, etc. Produced with CMOS technology, an omnipolar Hall IC is asked for lower supply voltage and less power supply. It is available in two package types: SOT-23-3L (Type M) and TO-92UA (Type UA). More detail of China Hall Sensor , please via: https://www.ahest.net/
阅读全文

Method Of Detecting Switch Type Hall Sensor

In the use of hall sensor for maintenance machinery, we will encounter holzer not working, from holzer's shape can not distinguish whether the holzer element is damaged, and how to detect whether the switch type of hall sensor is damaged. Taking Holzer YS282 as an example, the test method of switch type Holzer element is as follows: First, find a resistance R of 1K Omega, which is connected to the figure 1 and 3 feet, and connect the positive pole of the DC power of the 12V to the foot of the  switch type hall sensor YS282, and the anode is connected to the foot. The multimeter is placed in a DC 50V file, the red pen is connected to the foot, and the black pen is connected to the foot, and the pointer changes of the multimeter are observed. When the magnet N is very close to the test point of the hall sensor YS282, the pointer of the multimeter is deflected from the high level to the low level; when the N pole of the magnet is far away from the test point of the Holzer element Y
阅读全文

How To Use Water Flow Sensor？

The  Water Flow Sensor  consists of a plastic valve body, a water rotor and a Hall Effect Sensor. When the water flows through the rotor, rotor rolls and the speed of it changes with a different rate of flow. The hall-effect sensor outputs the corresponding pulse signal. This type of sensor can be found on different diameters, water pressure (MPa) and flow rate (L/m) ranges. Make sure to select one that will cover your needs. The sensor that I have it has 20mm diameter, <1.75Mpa water pressure and ~30 L/m flow rate range. A  Water Flow Meter Sensor  is a device that measures the amount of water flowing through a pipe. There are several water flow meter technologies to choose from depending on the water measurement application, maintenance requirements, and budgetary terms.  Each of these types of water flow meters has a unique principle of operation, specific application benefits, and overall cost-of-ownership. The question is: What water flow meter should you choose for your w
