Do you know Magnetic Switch?

 As a Magnetic Switch China Supplier, share with you. An electromagnetic switch is a switch controlled by an electromagnet, which is a combination of an electromagnet and a switch. When the electromagnet coil is energized, electromagnetic attraction is generated, and the movable iron core pushes or pulls the switch contact to close, thereby connecting the controlled circuit. Electromagnetic switches have a wide range of applications in various industries, and the most common is the contactor in the industrial field. The electromagnetic switch is the control switch on the starter. It is one of the three major components of the starter (DC motor, transmission meshing mechanism, electromagnetic switch). Its working principle is to generate electromagnetic attraction after the coil is energized, which causes the movable iron core to move, thereby pulling on the one hand The transmission meshing mechanism makes the starter pinion move forward and meshes with the engine flywheel ring gear. On the other hand, it pushes the switch contact to connect, so that the DC motor is energized to run, thereby driving the engine to start.

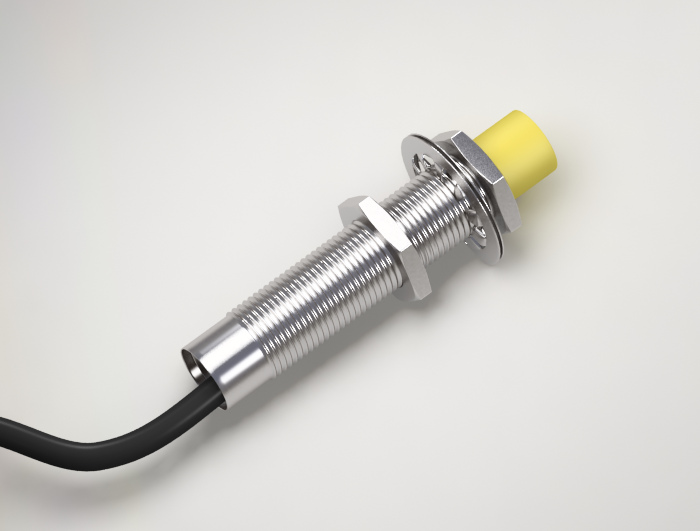

Hall Magnetic Switch

Hall Magnetic Switch

The starter electromagnetic switch is the key component of the starter, and the design quality of the electromagnetic switch directly affects the reliability of the starter.

The starter electromagnetic switch has two functions. One is to connect the main circuit to make the starter rotate, and the other is to push the drive gear out through the fork to mesh with the flywheel gear ring of the engine, so the electromagnetic switch is required to have corresponding suction and corresponding stroke. , The contacts can reliably make and break large currents. In addition, it is required to reduce the volume and weight as much as possible.

Based on the above characteristics, the contact structure of the electromagnetic switch generally adopts the contact form, that is, the movable contact is made into a bridge or disc shape, so that it has a larger heat dissipation surface and heat capacity. The magnetic system mostly adopts solenoid type electromagnet structure to meet the requirements of corresponding stroke, corresponding suction, small size and light weight.

The moving iron core of the electromagnetic switch can move smoothly in the brass bushing equipped with solenoid coils. The moving iron core rod is connected by the fork unidirectional device. Under the action of the return spring, the moving iron core is usually kept at the initial non-working position. When starting, the drive gear of the starter should move forward about 12-20mm. Therefore, when the electromagnetic switch starts to attract, a large magnetic potential is required to generate the necessary initial suction. After the suction, the air gap is reduced , The electromagnetic attraction force increases sharply, which greatly exceeds the force required to maintain the attraction state.

Our company also has Hall Magnetic Switch on sale, welcome to contact us.


评论

发表评论

此博客中的热门博文

Omnipolar Hall IC

  Omnipolar Hall IC The omnipolar Hall-effect sensor  includes the following on a single silicon chip: reverse voltage protector, voltage regulator, temperature compensation circuit, Hall-voltage generator, signal amplifier, Schmitt trigger and open-drain output driver, etc. Produced with CMOS technology, an omnipolar Hall IC is asked for lower supply voltage and less power supply. It is available in two package types: SOT-23-3L (Type M) and TO-92UA (Type UA). More detail of China Hall Sensor , please via: https://www.ahest.net/
阅读全文

Method Of Detecting Switch Type Hall Sensor

In the use of hall sensor for maintenance machinery, we will encounter holzer not working, from holzer's shape can not distinguish whether the holzer element is damaged, and how to detect whether the switch type of hall sensor is damaged. Taking Holzer YS282 as an example, the test method of switch type Holzer element is as follows: First, find a resistance R of 1K Omega, which is connected to the figure 1 and 3 feet, and connect the positive pole of the DC power of the 12V to the foot of the  switch type hall sensor YS282, and the anode is connected to the foot. The multimeter is placed in a DC 50V file, the red pen is connected to the foot, and the black pen is connected to the foot, and the pointer changes of the multimeter are observed. When the magnet N is very close to the test point of the hall sensor YS282, the pointer of the multimeter is deflected from the high level to the low level; when the N pole of the magnet is far away from the test point of the Holzer element Y
阅读全文

How To Use Water Flow Sensor？

The  Water Flow Sensor  consists of a plastic valve body, a water rotor and a Hall Effect Sensor. When the water flows through the rotor, rotor rolls and the speed of it changes with a different rate of flow. The hall-effect sensor outputs the corresponding pulse signal. This type of sensor can be found on different diameters, water pressure (MPa) and flow rate (L/m) ranges. Make sure to select one that will cover your needs. The sensor that I have it has 20mm diameter, <1.75Mpa water pressure and ~30 L/m flow rate range. A  Water Flow Meter Sensor  is a device that measures the amount of water flowing through a pipe. There are several water flow meter technologies to choose from depending on the water measurement application, maintenance requirements, and budgetary terms.  Each of these types of water flow meters has a unique principle of operation, specific application benefits, and overall cost-of-ownership. The question is: What water flow meter should you choose for your w
